RECIRCULATION Door Motor -V113-, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

Tightening specification. Refer to OVERVIEW - HEATER AND A/C UNIT .

NOTE:

Check the function of the doors and linkage before installing.

Check if the levers and shafts are seated correctly in the mounts.

-- The fresh air door must be set to "opened".

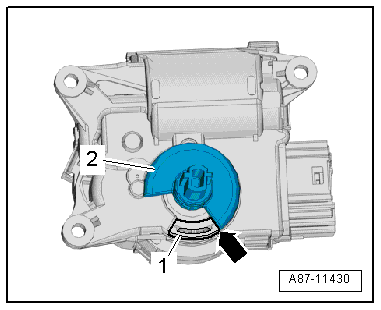

The actuating shaft -2- must contact the stop -1- -arrow- as illustrated.

NOTE:

If the actuating shaft of the actuator is not set to the "fresh air mode" stop, turn the mount in the actuator. See notes. Refer to ACTUATOR INFORMATION .

-- Mount the actuator on the air intake housing. While doing so, the actuating shaft must engage into the mount.

There must not be any play in the connection between the actuating shaft and the mount.

NOTE:

If the screws cannot be installed, the actuator does not sit completely on the housing.

-- Route the wiring harness so that it cannot come in contact with any moving parts (for example, the actuator lever).

-- To check the actuator function, connect the adapter cable (refer to ACTUATOR INFORMATION ) or connect the actuator contacts "5" and "6" to a 12 V battery via a 5A fuse using a cable from the Connector Test Set :VAG1594D .

NOTE:

Turn the actuator so far until it has reached a favorable position for installation. The direction of rotation can be reversed by switching the positive and negative.

-- Install the remaining components.

-- Check the DTC memory and erase any displayed entries, then perform the "basic setting". Use the Vehicle Diagnostic Tester in the"Guided Fault Finding" function.

-- Check the heating and A/C system function.
