Overview - A/C Compressor Power Unit, 5-Cylinder Engine (AUDI TT RS)

WARNING: This page is about a different variant/trim than selected.

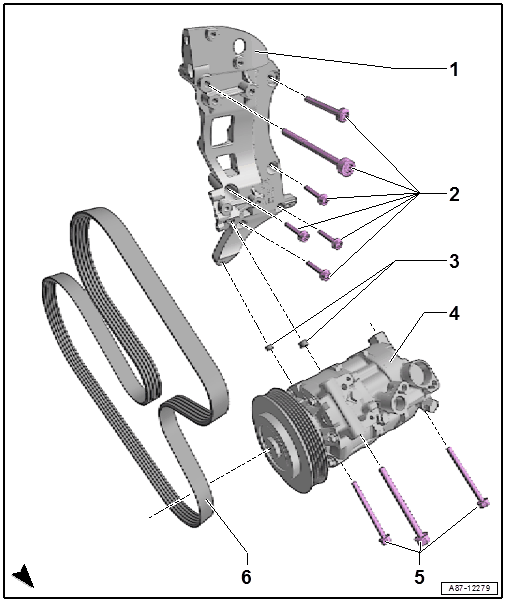

Fig 1: Exploded View Of Version 2 (With Single Bent Pulley)

Courtesy of AUDI OF AMERICA, LLC

Sub-Assembly Bracket
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING [CNTC, CYFB] / SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING [DAZA] .
Bolts
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING [CNTC, CYFB] / SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING [DAZA] .
Alignment Sleeves
- Quantity: 2
- Be careful to use the correct version and make sure the subassembly bracket and A/C compressor fit correctly.
A/C Compressor
- There are different versions. Refer to the Parts Information.
- Refrigerant Line, Disconnecting and Connecting. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING TO A/C COMPRESSOR .
- Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING AT BRACKET, 5-CYLINDER ENGINE (AUDI TT RS) .
- Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
  NOTE:
  There are different versions depending on the refrigerant (R134a or R1234yf). Refer to Parts Information.
Bolts
- Steel bolts: 25 Nm
- Aluminum bolts: 8 Nm +180°
- Only use aluminum bolts once, then replace.
- There are different versions. Refer to the Parts Information.
- Quantity: 3
Ribbed Belt
- Check for wear
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING [CNTC, CYFB] / RIBBED BELT, REMOVING AND INSTALLING [DAZA] .
- Mark the running direction and install on the proper side. Refer to RIBBED BELT, REMOVING AND INSTALLING [CNTC, CYFB] / RIBBED BELT, REMOVING AND INSTALLING [DAZA] .
