Belt Pulley, Removing And Installing, DENSO A/C Compressor: Removing

WARNING: This page is about a different variant/trim than selected.

-- Detach the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1 and 2- and remove the air duct hose.

Fig 1: Identifying Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING [CNTC, CYFB] / RIBBED BELT, REMOVING AND INSTALLING [DAZA] .

-- Remove the closure cap -1-.

Courtesy of AUDI OF AMERICA, LLC

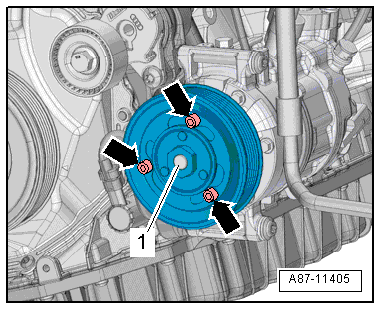

-- Remove the bolts -arrows- by counterholding the belt pulley with an oil filter band wrench.

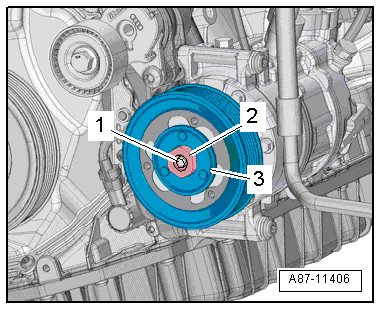

-- Remove the nut -2- by counterholding on the input shaft -1- of the A/C compressor.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the drive plate -3- with the nut.

NOTE:

The torque to drive the A/C compressor is transferred to the A/C compressor shaft via the drive plate threaded connection.

If, when operating the A/C compressor, the drive plate was attached to the A/C compressor shaft so tightly, that it can no longer be loosened (the 7 mm hex fitting cannot transfer the necessary torque), the A/C compressor must be replaced.

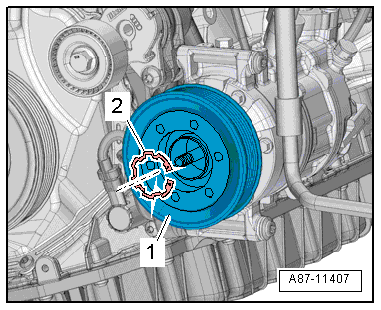

-- Remove the circlip -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the belt pulley -1-.
