A/C Compressor, Removing And Installing: Removing

Fig 1: Identifying Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Remove the refrigerant lines from the A/C compressor. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING TO A/C COMPRESSOR .

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING [CNTC, CYFB] / RIBBED BELT, REMOVING AND INSTALLING [DAZA] .

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS6122  .

-- Remove the A/C compressor from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

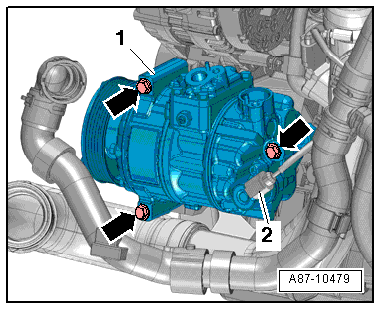

Fig 2: A/C Compressor Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the A/C compressor -1-.
