Front Center Vent (Defroster Vent), Removing And Installing
WARNING: This page is about a different variant/trim than selected.
-- If equipped, remove the Sunlight Photo Sensor -G107-. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .

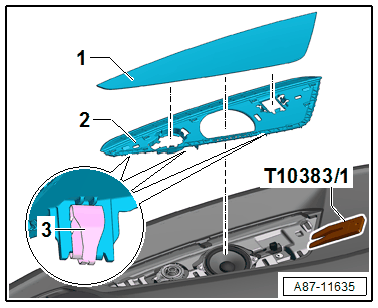

-- Speaker Trim -1- and Vent -2-, Removing and Installing. Refer to OVERVIEW - INSTRUMENT PANEL .
NOTE:
The vent -2- is secured in the instrument panel with clips -3-. Carefully pry them out using a Wedge Set :T10383 , for example.
