Driver Side FOOTWELL Vent, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
WARNING:
Risk of injury by the knee airbag.
- Before working in the area of pyrotechnic components, the person must "discharge static electricity". Follow the safety precautions when working on the airbag. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
-- Turn off the ignition.
-- Versions with ignition lock: Remove the ignition key.
-- Remove the driver side instrument panel cover (or knee airbag). Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

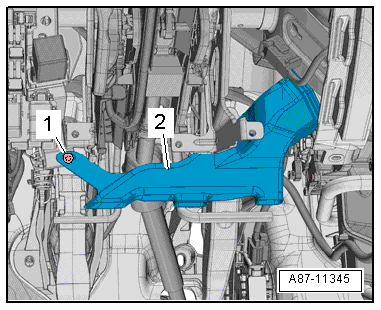

-- Remove the expanding rivet -1- (or screw; there are different fasteners).
-- Remove the footwell vent -2- (driver side).
