Air Intake Duct, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Remove the dust and pollen filter. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .

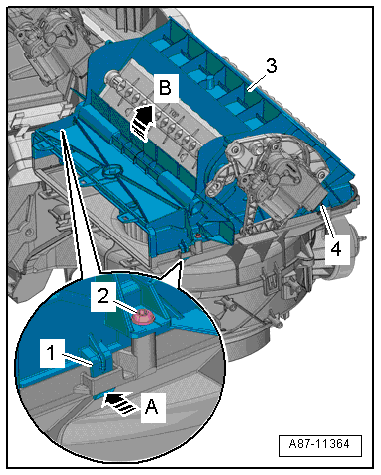

-- Disconnect the connector -4- and free up the wiring harness.
-- Remove the screws -2-.
-- Release the tabs -1- in direction of -arrow A-.
-- Pivot the air intake duct -3- upward in direction of -arrow B- and disengage.
