RIGHT AIR DUCT WITH Right Side Window Defroster Door Motor -V410-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition.

-- Versions with ignition lock: Remove the ignition key.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the instrument panel support -4- (screw tightening specification: 3 Nm). Refer to OVERVIEW - INSTRUMENT PANEL .

Courtesy of AUDI OF AMERICA, LLC

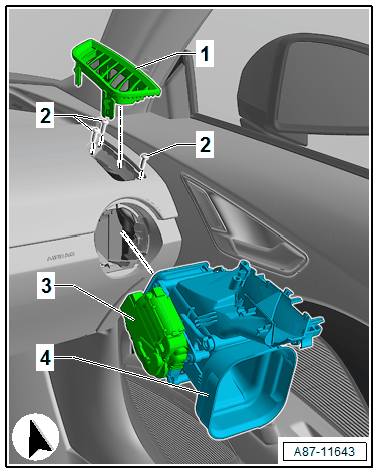

-- Remove the right side defroster vent -1-. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -2- (tightening specification: 1 Nm).

-- Detach the right air duct -4- with the Right Side Window Defroster Door Motor -V410- -3- from the air duct in the instrument panel and pivot it downward.

-- Disconnect the connector from the Right Side Window Defroster Door Motor -V410- -3-. Refer to Right Side Window Defroster Door Motor -V410- WITH Right Front Defroster/Upper Body Vent Shut-Off Door Motor Position Sensor -G317-, REMOVING AND INSTALLING .

-- Remove the Right Side Window Defroster Door Motor -V410- from the air duct -4-. Refer to Right Side Window Defroster Door Motor -V410- WITH Right Front Defroster/Upper Body Vent Shut-Off Door Motor Position Sensor -G317-, REMOVING AND INSTALLING .
