Air Quality Sensor -G238- /Humidity Sensor In Fresh Air Intake Duct -G657-, REMOVING AND INSTALLING: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Air Quality Sensor -G238- and the Humidity Sensor in Fresh Air Intake Duct -G657- are only installed on a "Convenience" A/C system version (on an automatic climate control system).
For vehicles with a "Basic" A/C system version, neither an Air Quality Sensor -G238- nor a Humidity Sensor In Fresh Air Intake Duct -G657- is installed.

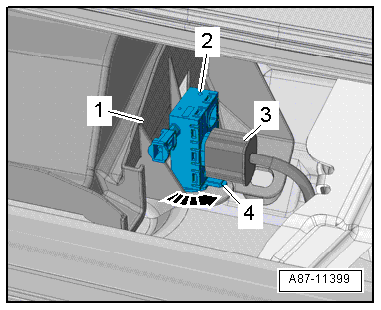

There are different versions of the Air Quality Sensor -G238- -3- and the Humidity Sensor In Fresh Air Intake Duct -G657- -1-. Pay attention to the correct allocation.
The Air Quality Sensor -G238- -3- is only installed on the "Convenience" A/C system version (on an automatic climate control system). It is integrated together with the Humidity Sensor In Fresh Air Intake Duct -G657- -1- in the housing -2-.
