Emergency Release From P, AUDI A1

WARNING: This page is about a different variant/trim than selected.

Procedure

-- Move the selector lever into "D/S" position.

-- Switch the ignition off.

-- Engage the parking brake.

-- Using both hands, reach into the shift lever boot on the right and left sides -arrows- and unclip the shift cover -1- by pulling it upward in direction of -A arrows-.

GWWA34-11775Courtesy of AUDI OF AMERICA, LLC

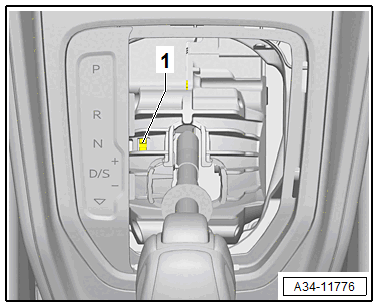

-- With a screwdriver push the plastic part -1- from the top and hold it in this position.

GWWA34-11776Courtesy of AUDI OF AMERICA, LLC

-- When the solenoid is released, press the button in the selector lever handle and move the selector lever out of "P".
