Securing On Engine And Transmission Holder

Special tools and workshop equipment required

• Holding Plate: VW309A
• Holding Fixture: VW313  or
• Engine and Gearbox Bracket: VAS6095A
• Transmission Support: VW353
• Holding Fixture: VW540

Transmission, Securing Horizontally

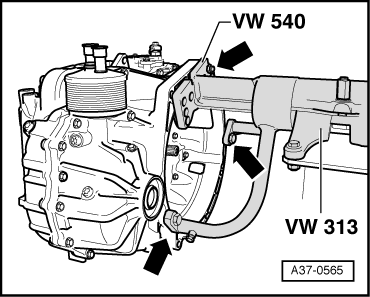

Fig 1: Identifying Transmission To Holding Fixture VW 540 And VW 313

Courtesy of AUDI OF AMERICA, LLC

-- Secure the transmission on the : VW540  -arrows-.

-- Insert the transmission into the : VW313  or : VAS6095A  using the : VAS6100  .

Tip:

• Because the center of gravity is located outside the holding fixture center of rotation, a second technician must hold the transmission housing to turn the transmission.
• Vents for the transmission housing must be closed when turning a filled transmission on the engine and transmission holder with the bleeder downward.

Transmission, Securing Vertically

Fig 2: Identifying Front Wheel Drive Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Secure the transmission to the : VW353  and insert it with the : VW309A  into the : VW313  or the : VAS6095A  .
