Engine Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

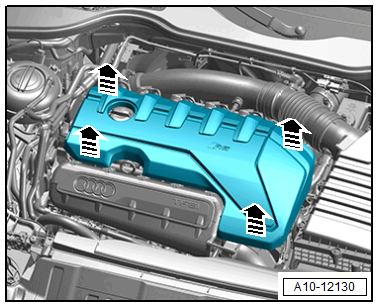

-- Remove the engine cover upward in direction of -arrows-.

GWWA10-12130Courtesy of AUDI OF AMERICA, LLC
