Transmission Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Free up the wiring harness on the bracket -1- for the air filter housing.

GWWA24-11597

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the bracket for the air filter housing.

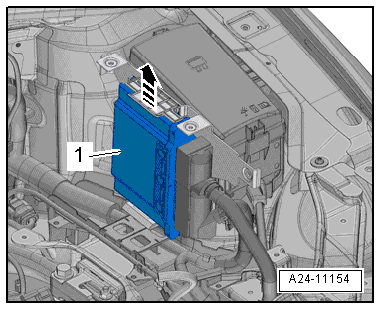

-- Remove the Engine Control Module -J623- -1- from the bracket. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

Fig 1: Identifying Engine Control Module

GWWA24-11154

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the bracket -1-.

GWWA34-11052

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- for the transmission mount -1-.

GWWA10-11862

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wiring guide with the :80-200 and press it upward in direction of -arrows-.

GWWA10-12099

Courtesy of AUDI OF AMERICA, LLC

If the transmission mount is going to be re-installed, mark its installation position and the longitudinal member.

Fig 2: Identifying Transmission Mount And Bolts
Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and then the transmission mount -A-.
