Overview - SUBFRAME Mount
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

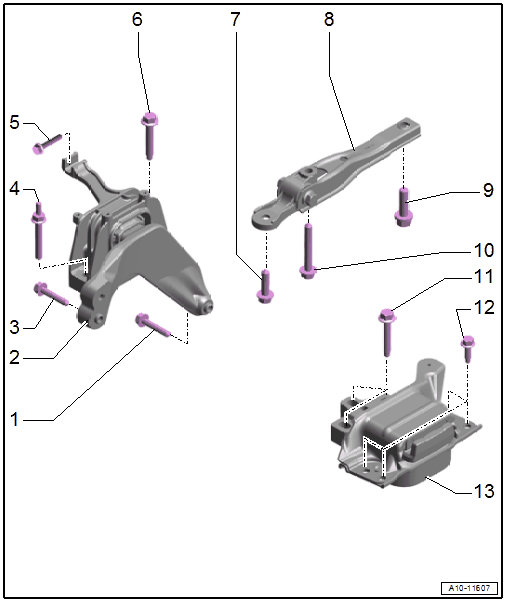

- 1 - Bolt
- 40 Nm +90°
- Always replace after removing.
- 2 - Engine Mount
- With support arm
- Adjustment, checking. Refer to SUBFRAME MOUNT, CHECKING ADJUSTMENT
- Adjusting. Refer to SUBFRAME MOUNT, ADJUSTING .
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- 3 - Bolt
- 40 Nm +90°
- Always replace after removing.
- 4 - Bolt
- 40 Nm +90°
- Always replace after removing.
- 5 - Bolt
- 20 Nm +90°
- Always replace after removing.
- 6 - Bolt
- 40 Nm +90°
- Always replace after removing.
- 7 - Bolt
- Tightening specification and sequence. Refer to Fig 2.
- 8 - Pendulum Support
- Removing and installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- 9 - Bolt
- Tightening specification and sequence. Refer to Fig 2.
- 10 - Bolt
- Tightening specification and sequence. Refer to Fig 2.
- 11, 12 - Bolts
- Tightening specification. Refer to the appropriate service information .
- 13 -
Transmission Mount
- Adjustment, checking. Refer to SUBFRAME MOUNT, CHECKING ADJUSTMENT
- Adjusting. Refer to SUBFRAME MOUNT, ADJUSTING .
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Pendulum Support - Tightening Specifications and Sequence
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specifications |
|---|---|---|
| 1. | -2 and 3- | 50 Nm |
| 2. | -1- | 130 Nm |
| 3. | -1 to 3- | 90° additional turn |
