Engine, Removing
Special tools and workshop equipment required
- Pry Lever:80-200
- Coolant Collection System:VAS5014 or Shop Crane - Drip Tray:VAS6208
- Hose Clip Pliers:VAS6340
- Hose Clip Pliers:VAS6362
- Engine and Gearbox Jack:VAS6931
- Engine Holder Bracket:T03000A , or alternatively Engine Holder Bracket:T03000 with Pins:T0300/3
- Commercially available Step Ladder
- Safety Gloves
- Protective Eyewear
Tools, Preparing
-- The :T03000A is needed for the engine removal. If only the :T03000 is available it must be equipped with two holes.
-- A modification of tools is not required if no repair should be performed with the engine removed.
- Hole -a- = 20 mm diameter.
- Dimension -b- = 45 mm.
- Dimension -c- = 34 mm
-- In addition the Engine Holder Bracket - Pins T03000/3 are required.
Procedure
- The engine is removed downward together with the transmission.
- During installation, all cable ties must be installed at the same location.
-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Drain the refrigerant circuit. Refer to Working with A/C Service Station (1 Of 2) / Working with A/C Service Station (2 Of 2) .
The cooling system is under pressure when the engine is warm. Risk of scalding due to hot steam and hot coolant.
Scalding the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.
-- Open the coolant reservoir cap -arrow-.
-- Remove the subframe with the steering gear. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
-- Vehicle without particulate filter: remove the rear catalytic converter or the exhaust pipes. Refer to REAR CATALYTIC CONVERTER/EXHAUST PIPE, REMOVING AND INSTALLING .
-- Remove the driveshaft. Refer to the appropriate service information .
-- Remove the engine cover upward in direction of -arrows-.
-- Remove the bolts -arrows- and air duct -1-.
-- Free up the transmission ventilation hose -4-.
-- Loosen the clamps -1 and 2- and remove the air duct hoses.
-- Remove the air filter housing upward from the retaining pin.
-- Free up the wiring harness on the bracket -1- for the air filter housing.
-- Remove the bolts -arrows- and remove the bracket for the air filter housing.
-- Vehicle with particulate filter: remove the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
-- Remove the front left and right wheel spoilers. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

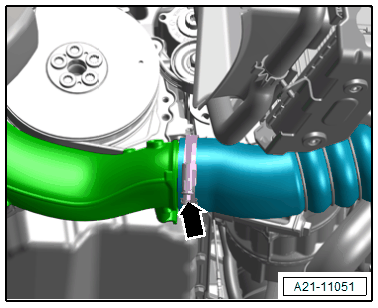

-- Loosen the hose clamp -1- and remove the air duct hose.
-- Loosen the hose clamp -arrow- and remove the air duct hose.
-- Place the container of the :VAS5014 or the :VAS6208 underneath.

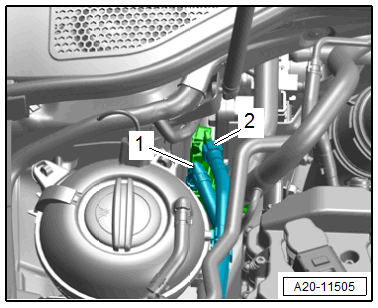

-- Loosen the hose clamps -1, 2 and 3-, remove the coolant hoses and let the coolant drain out.
-- Loosen the hose clamps -arrows-, remove the coolant hoses from the coolant pipes on the transmission and let the coolant drain.
-- Disconnect the fuel supply line -1-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
-- Seal the open lines and connections with clean plugs from the :VAS6122 .
-- Press the release buttons and disconnect the EVAP system hose -2-.
-- Free up the hoses.
-- Loosen the hose clamp -4- and remove the coolant hose.
-- Remove the bolt -2- and nut -3- and move the right coolant pipe to the side.
-- Disconnect the connector -1- for the Engine Coolant Level Warning Switch -F66-.
-- Release the retainers with a screwdriver in direction of -arrow- and move the coolant expansion tank to the side.
-- Loosen the hose clamp -arrow- and remove the coolant hose.
-- Loosen the hose clamps -arrows- and remove the coolant hoses.
-- Remove the bolt -2-.
-- Press the coolant pipes -1- on the fan shroud slightly toward the rear.
-- Remove the refrigerant line from the A/C compressor. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING TO A/C COMPRESSOR .
-- Remove the connectors from bracket and disconnect:
- For the Oxygen Sensor after Three Way Catalytic Converter -G130-
- For the Heated Oxygen Sensor -G39-
-- Free up electrical wires to oxygen sensors.
-- Disconnect the connector -1-.
-- Remove the vacuum line -2- from the brake booster at the same time do not damage the vacuum line.
- Use :80-200 in the following steps to remove the spiral clips.
-- Disconnect the connector -1- on the Engine Control Module -J623- and remove the engine control module from the bracket. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .
There is a risk of destroying the control module (Mechatronic) with electrostatic discharge.
- Do not touch connector terminals in the transmission connector with hands.
-- To discharge static electricity, touch vehicle ground with hand (without gloves).
-- Remove and disconnect the connector -3- for the Dual-Clutch Transmission Mechatronic -J743- from the bracket.
-- Remove the connector -2- from the bracket and disconnect it.
-- Free up the wires.
-- Remove the nut -4- and free up the ground wire.
-- Release the retainers in direction of -arrows- and remove the cover -1- from the engine compartment E-box.
-- Open the retainers with a screwdriver in direction of -arrow-, remove the cover -1- for the engine compartment E-box upward.
-- Remove the nut -arrow- and free up the wire.
-- Remove the selector lever cable from the transmission and pull it out of the cable bracket. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
-- Disconnect the connector -1- by sliding the retainer toward the rear and pressing the release down.
-- Pry up the cap -2-.
-- Remove the nut -3- and free up the terminal 30/B+ wire.
-- Loosen the bolts -arrows- for the transmission mount -1- approximately two turns.
-- Remove the left and right drive axles from the transmission and tie them up toward the rear. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Remove the :T03000/3 from the :T03000A .

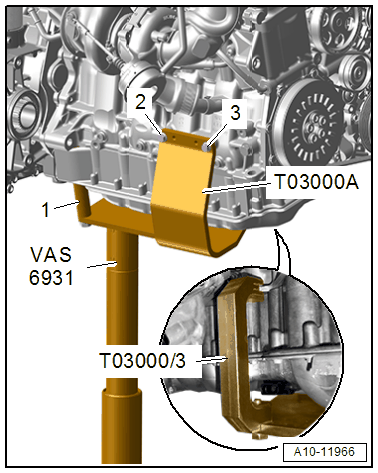

-- Mount the :T03000A on the cylinder block with the remaining pins -1- and install the bolts -2 and 3- by hand all the way.
-- Install the :T03000/3 on the cylinder block and tighten to 20 Nm.
-- Tighten the bolts -2 and 3- to 25 Nm.
-- Install the :VAS6931 on the :T03000A and slightly lift the engine/transmission assembly.
TIP:
Use a step ladder to remove the subframe mount bolts.

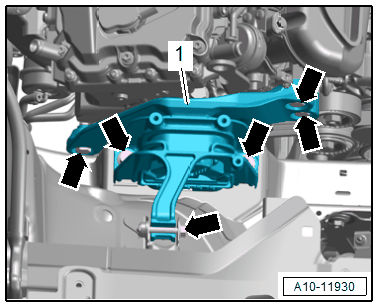

-- Remove the bolts -arrows- and engine mount -1-.
TIP:
The rear bolt in the cylinder block is accessible from the wheel housing side. To do so loosen the wheel housing liner and push to the side. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the bolts -arrows- for the transmission mount -1-.
Risk of damaging the hose and line connections as well as the engine compartment.
- Make sure all the hose and line connections between the engine, transmission, subframe and body have been disconnected.
- Carefully lower and guide the engine/transmission assembly out of the engine compartment.
- Make certain that there is enough clearance for the A/C compressor.
- Pay attention to the heat shield for the center tunnel.
-- Move the transmission side of the engine/transmission assembly forward and then lower it.
