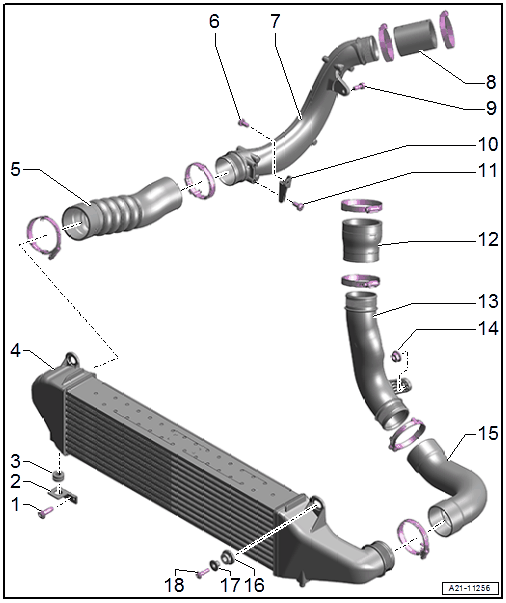

Overview - Charge Air System
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Before testing or performing a repair, check all air guide pipes and hoses and all vacuum lines for leaks and secure seating.
- Bolt
- 10 Nm
- Retaining Bracket
- Rubber Bushing
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Air Duct Hose
- Installation position. Refer to Fig 2.
- Bolt
- 8 Nm
- Air Duct
- Installation position. Refer to Fig 4.
- Air Duct Hose
- Installation position. Refer to Fig 4.
- Bolt
- 20 Nm
- Bracket
- Bolt
- 5 Nm
- Air Duct Hose
- Installation position. Refer to Fig 3.
- Air Duct
- Installation position. Refer to Fig 3.
- Nut
- 8 Nm
- Air Duct Hose
- Grommet
- Spacer Sleeve
- Bolt
- 5 Nm
Air Duct Hoses on Air Duct - Installation Position and Tightening Specification
- The marks -arrows- must be positioned opposite each other.
- The locking bolts from the previously installed hose clamp -1 and 2- must be in the shown positions.
-- Tighten the hose clamps to 5.5 Nm.
Left Air Duct Hose on Intake Tube - Installation Position and Tightening Specification
- The markings on the hose must align with the housing edge or the notch on the air duct pipe -arrows-.
- The locking bolts from the previously installed hose clamp -1 and 2- must be in the shown positions.
-- Tighten the hose clamps to 5.5 Nm.
Right Air Duct Hose on Turbocharger - Installation Position and Tightening Specification
- The marks -arrows- must be positioned opposite each other.
- The locking bolts from the previously installed hose clamp -1 and 2- must be in the shown positions.
-- Tighten the hose clamps to 5.5 Nm.
