Charge Air Cooler, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Equipped on some models: remove the Distance Regulation Control Module -J428-. Refer to appropriate service information. .
-- Pay attention to the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

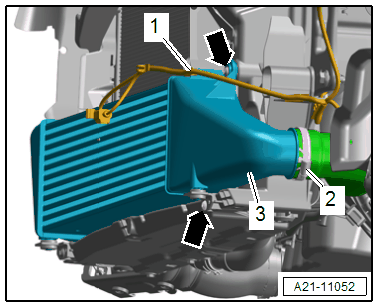

-- Loosen the hose clamp -2- on the left and right sides and remove air duct hose.
-- Remove the left and right bolts -arrows- and remove the charge air cooler -3-.
