Radiator, Removing And Installing: Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Drain the refrigerant circuit. Refer to Working with A/C Service Station (1 Of 2) / Working with A/C Service Station (2 Of 2) .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Place the container of the :VAS5014  or the :VAS6208  underneath.

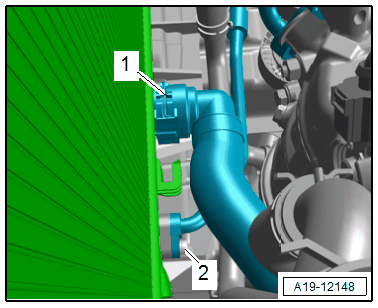

-- Lift the clamp -1-, remove the lower right coolant hose from the radiator and allow the coolant to drain.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and remove the hose/line assembly for the refrigerant.

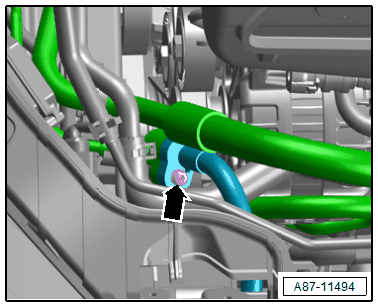

-- Remove the bolt -arrow- and remove the hose/line assembly for the refrigerant.

Courtesy of AUDI OF AMERICA, LLC

Radiator Mount With Catch:

Courtesy of AUDI OF AMERICA, LLC

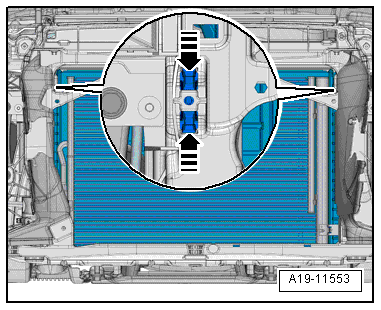

-- Disconnect the left and right radiator mount catches -arrows- with a side cutter. Push the top of the coolant radiator slightly toward the rear.

Radiator Mount With Threaded Connection:

Courtesy of AUDI OF AMERICA, LLC

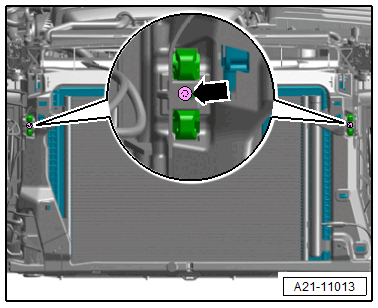

-- Remove the bolt -arrow- on the left and right. Push the top of the coolant radiator slightly toward the rear.

Continuation:

-- Remove the radiator upward from the lock carrier and remove the left and right radiator mount.

-- Remove the coolant radiator with the condenser upward.

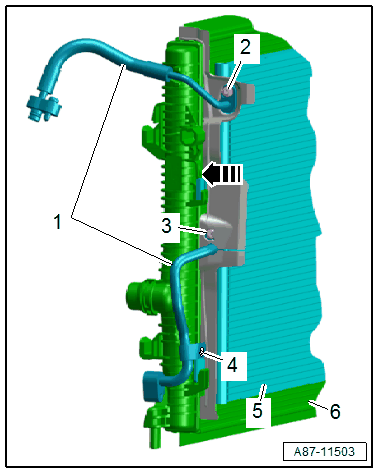

-- Remove the bolts -2, 3 and 4- and remove the refrigerant line and hose/line assembly -1- for the refrigerant.

Courtesy of AUDI OF AMERICA, LLC

-- Release the left and right catches -arrow- and remove the condenser -5- from the radiator -6-.
