Radiator Fan - V7-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- During installation, all cable ties must be installed at the same location.
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

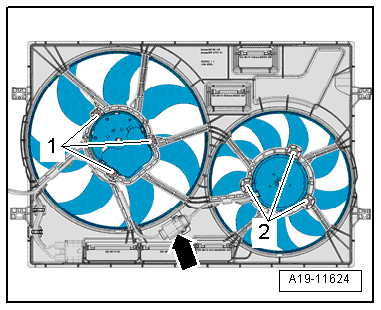

-- Disconnect the connector -arrow-.
-- Remove the bolts and remove the radiator fan.
- For the Radiator Fan -V7-
- For the Radiator Fan 2 -V177-
