Overview - Radiator/Radiator Fan
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

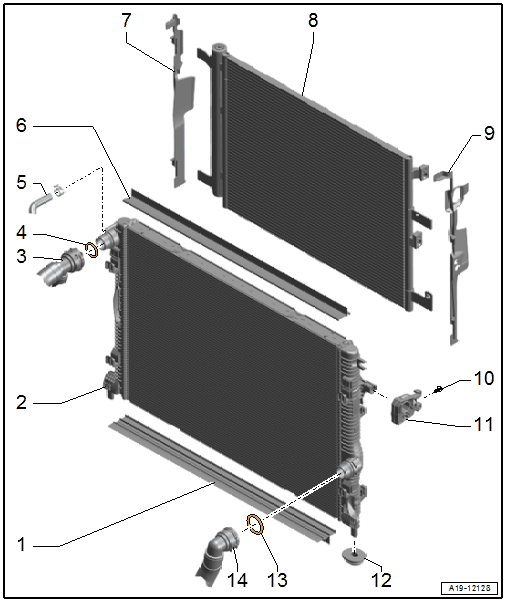

Radiator
- Air Duct
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Change the coolant after replacing
- Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Fig 2.
- O-Ring
- Always replace after removing.
- Coat with coolant
- Coolant Hose
- Air Duct
- Air Duct
- Condenser
- Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Air Duct
- Bolt
- 5 Nm
- Radiator Mount
- Radiator Mount
- O-Ring
- Always replace after removing.
- Coat with coolant
- Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Fig 2.
Connect the Coolant Hose to the Connector Coupling on the Radiator.
- Replace the damaged clip -4-.
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and insert it in the coolant hose.
-- Press the coolant hose onto the radiator -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connector coupling is engaged correctly.
Fan Shroud and Radiator Fan
- Bolt
- 5 Nm
- Fan Shroud
- Removing and installing. Refer to FAN SHROUD, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Radiator Fan -V7-
- Removing and installing. Refer to Radiator Fan - V7-, REMOVING AND INSTALLING .
- Radiator Fan 2 -V177-
- Removing and installing. Refer to Radiator Fan - V7-, REMOVING AND INSTALLING .
