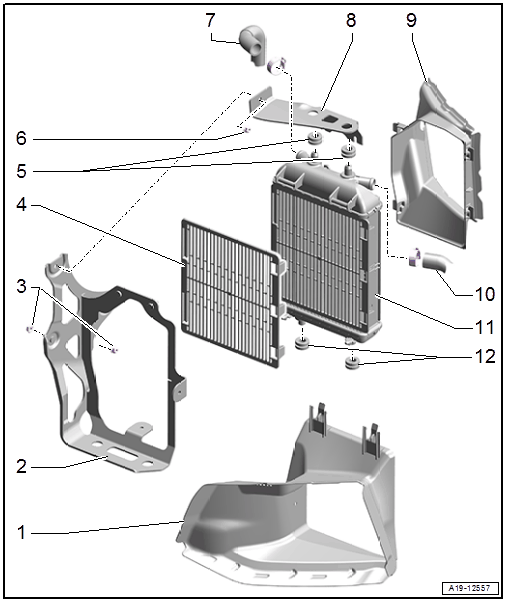

Overview - Auxiliary Radiator
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Air Duct
- Bracket
- For auxiliary radiator
- Nuts
- 9 Nm
- Grille
- Grommets
- Nut
- 9 Nm
- Coolant Hose
- Bracket
- Air Duct
- Coolant Hose
- Auxiliary Cooler
- The left side is shown
- Removing and installing. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING .
- Radiator Mount
