Auxiliary Radiator, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel. Refer to WHEELS AND TIRES .
-- Remove the front wheel spoiler as well as the wheel housing liner in the front area and push toward the rear. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
Left Auxiliary Radiator:
-- Clamp off the coolant hoses on the radiator using the :3094 .
-- Loosen the hose clamps and remove the coolant hoses from the radiator.

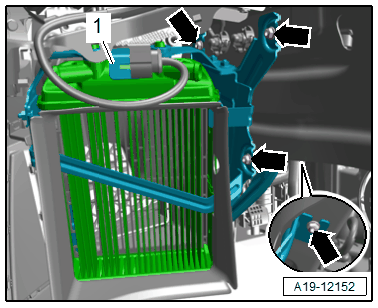

-- Loosen nuts -arrows- a few turns.
-- Free up the wiring harness.
-- Remove the left auxiliary radiator -1- forward from the threaded pin and remove toward the rear.
