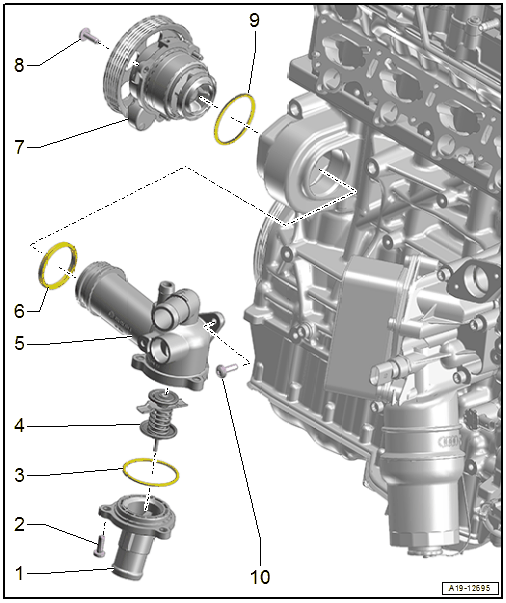

Overview - Coolant Pump/Coolant Thermostat
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Connection
- Bolt
- 10 Nm
- O-Ring
- Replace after removing.
- Coolant Thermostat
- Removing and installing. Refer to COOLANT THERMOSTAT, REMOVING AND INSTALLING .
- Coolant Distribution Housing
- Removing and installing. Refer to COOLANT DISTRIBUTION HOUSING, REMOVING AND INSTALLING .
- Seal
- Replace after removing.
- Coolant Pump
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt with Fastener
- 9 Nm
- O-Ring
- Replace after removing.
- Bolt
- 8 Nm +90°
- Replace after removing.
