Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING

Special tools and workshop equipment required

• Hose Clip Pliers:VAS6362

Procedure

• The engine is cold.

-- Briefly open the coolant reservoir cap -arrow- to reduce the residual pressure in the coolant system.

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

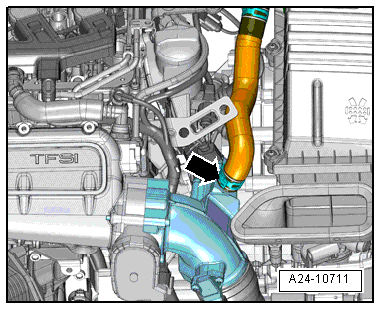

-- Loosen the hose clamp -arrow- and remove the air duct hose.

Fig 2: Loosen Hose Clamp And Remove Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Fig 3: Disconnecting Connector

Courtesy of AUDI OF AMERICA, LLC

-- Place a cloth underneath to catch any escaping coolant.

-- Remove the clip -2- and then remove the Engine Coolant Temperature Sensor -G62-.

• Replace the O-ring after removing.
• Used coolant cannot be used again.

-- To prevent coolant loss, install the new coolant temperature sensor immediately.

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING .
