Electric Coolant Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model preliminary work may be required. Refer to ELECTRIC COOLANT PUMP, REMOVING AND INSTALLING .

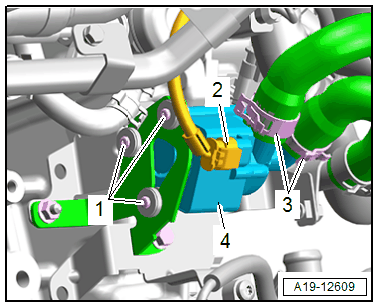

-- Remove the bolt -3-.
-- Loosen the hose clamp -1-, remove the coolant hose and push to the side.
-- Disconnect the connector -2-.
-- Place a cloth underneath to catch any escaping coolant.
-- Remove the bolts -1- and the After-Run Coolant Pump -V51- -4-.
