Coolant Valves, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

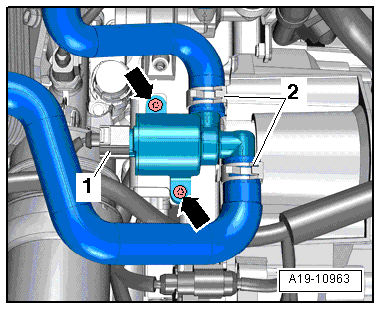

Fig 1: Component Location: Cooling Circuit Solenoid Valve -N492-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the Cooling Circuit Solenoid Valve -N492-.

-- Place a cloth underneath to catch any escaping coolant.

-- Clamp off and remove the coolant hoses -2- with :3094 .
