Left Coolant Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Loosen the hose clamp -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3- and remove the air duct pipe -1-.

-- Free up the vent hose -1-.

Courtesy of AUDI OF AMERICA, LLC

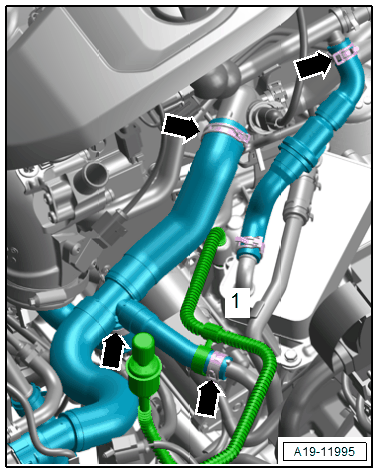

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

-- Disconnect the connector -1-.

Fig 1: Brake Booster Pressure Sensor -G294- Component Location

Courtesy of AUDI OF AMERICA, LLC

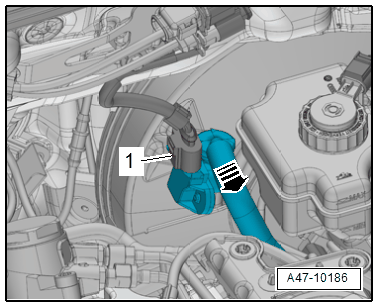

-- Remove the vacuum line from the brake booster in direction of -arrow- at the same time do not damage it.

-- Remove the vacuum hose -2- and free up the left coolant pipe.

Fig 2: Disconnecting Vacuum Hose

Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum hose -1- -arrow- and remove from the brake booster vacuum pump at the same time do not damage the vacuum hose.

-- Free up the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

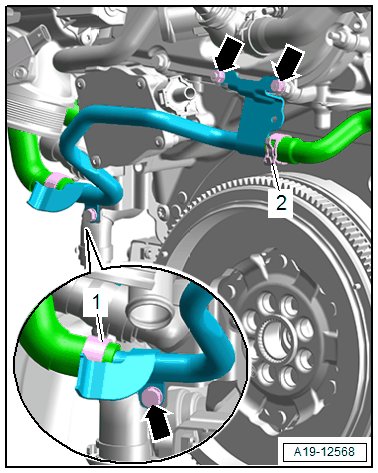

-- Remove the nuts and bolt -arrows-.

-- Loosen the hose clamps -1 and 2- and remove the left coolant pipe.
