Exhaust Gas Temperature Sensor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the center underbody trim panel from the inside and slightly lower. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

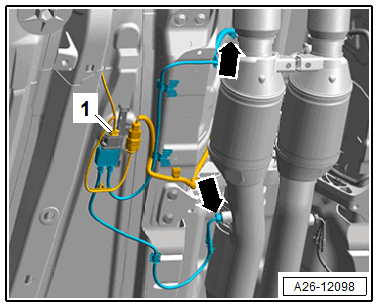

Particulate Filter Differential Temperature Sensor -GX41- :
-- Remove the bolts -1 and arrows- and remove the bracket.
-- Remove, disconnect and free up the connector -1- from the bracket.
-- Remove the exhaust gas temperature sensor -arrows-.

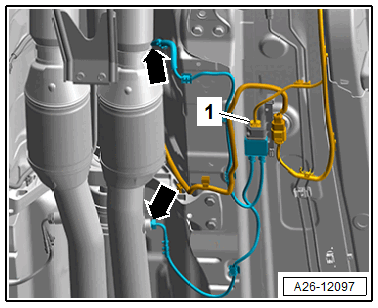

Particulate Filter Differential Temperature Sensor 2 -GX42- :
-- Remove, disconnect and free up the connector -1- from the bracket.
-- Remove the exhaust gas temperature sensor -arrow-.
