Exhaust Gas Temperature Sensor, Removing And Installing: Installing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
-- Bring the exhaust gas temperature sensor before the particulate filter into its installation position:
- Exhaust Gas Temperature Sensor 3 Bank 2 -G497- angle -α- = 40° ± 5°.
- Exhaust Gas Temperature Sensor 3 -G495- angle -β- = 25° ± 5°.

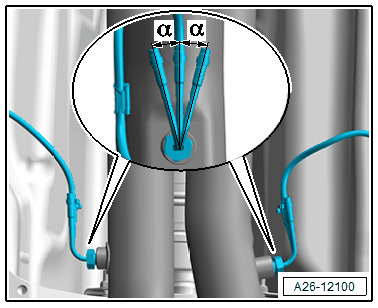

-- Bring the exhaust gas temperature sensor after the particulate filter into its installation position:
- Angle -α- = maximum 15°.
