Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Loosen the hose clamp -arrow- and remove the air duct hose.

Fig 1: Loosen Hose Clamp And Remove Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

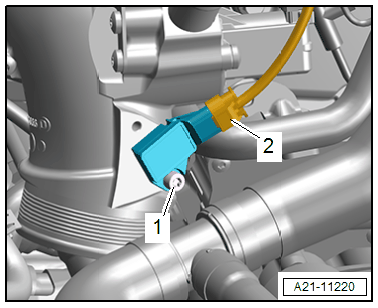

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and the Charge Air Pressure Sensor -G31-.
