Oil Pressure Sensor -G10-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the connector -1-.

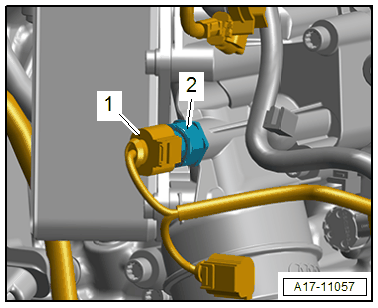

GWWA17-11057Courtesy of AUDI OF AMERICA, LLC

-- Remove the Oil Pressure Sensor -G107- -2- using the : T40363  .
