Oil Pump, Removing And Installing: Removing

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the crankcase ventilation module. Refer to CRANKCASE VENTILATION MODULE, REMOVING AND INSTALLING .

-- Remove the camshaft adjustment valves. Refer to INTAKE AND EXHAUST VALVES .

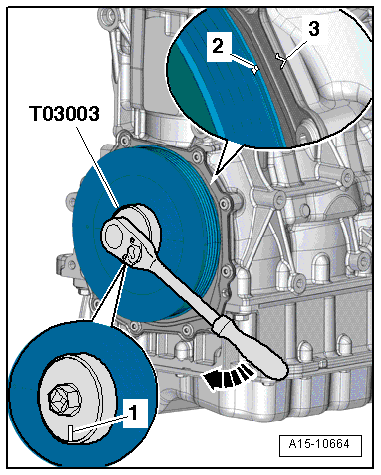

-- Turn the crankshaft in the direction of engine rotation -arrow- to "TDC" using the : T03003A  .

Fig 1: Turning Crankshaft To TDC

Courtesy of AUDI OF AMERICA, LLC

• The notch -1- in the : T03003A  is positioned vertically to the oil pan sealing surface.
• The marking -2- on the vibration damper is positioned opposite the marking -3- on the sealing flange.

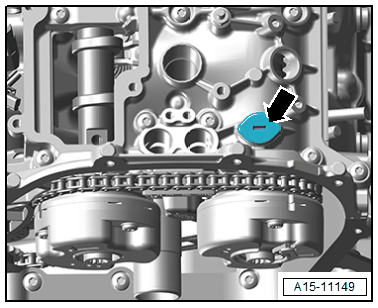

-- Release and remove the plug -arrow- counter-clockwise from the camshaft housing.

Courtesy of AUDI OF AMERICA, LLC

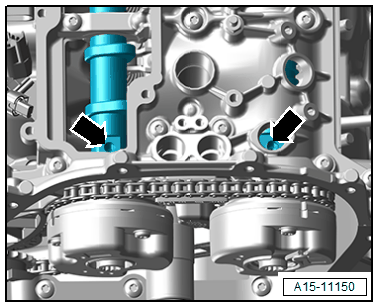

• The threaded holes -arrows- in the camshafts must be visible.

  Courtesy of AUDI OF AMERICA, LLC

TIP:

If the threaded hole is not visible, turn the crankshaft one additional turn.

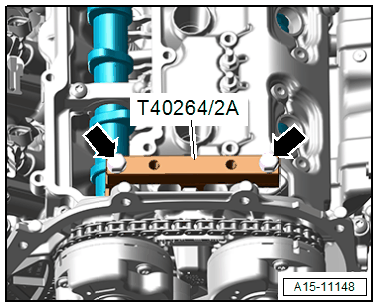

-- Insert the : T40264/2A  -arrow- on the cylinder head and tighten to 12 Nm, to do so turn the crankshaft slightly back and forth if necessary.

Courtesy of AUDI OF AMERICA, LLC

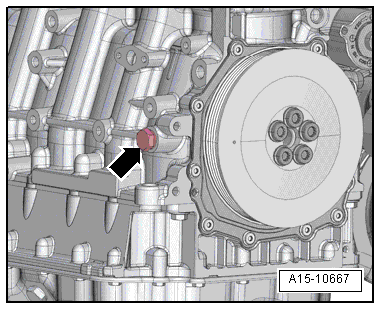

-- Remove the locking bolt -arrow- for the "TDC" marking from the cylinder block.

Fig 2: "TDC" Locking Bolt- Marking- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Lock the crankshaft with the : T40069  .

Fig 3: Identifying Locking Pin T40069

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .

-- Remove the bolts -3- and the chain tensioner.

Fig 4: Identifying Timing Mechanism Drive Chain

Courtesy of AUDI OF AMERICA, LLC

-- Remove the chain from the oil pump.

-- Remove the bolts -arrows- and remove the oil pump.
