Oil Pan Upper Section, Removing And Installing: Removing

• The transmission is removed. Refer to TRANSMISSION, REMOVING AND INSTALLING .

-- Turn the crankshaft in the direction of engine rotation -arrow- to "TDC" using the : T03003A  .

Fig 1: Turning Crankshaft To TDC

Courtesy of AUDI OF AMERICA, LLC

• The notch -1- in the : T03003A  is positioned vertically to the oil pan sealing surface.
• The marking -2- on the vibration damper is positioned opposite the marking -3- on the sealing flange.

-- Remove the locking bolt -arrow- for the "TDC" marking from the cylinder block.

Fig 2: "TDC" Locking Bolt- Marking- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Install the : T40069  in the groove and tighten to 15 Nm. If necessary, move the crankshaft back and forth slightly to center the bolt.

Fig 3: Identifying Locking Pin T40069

Courtesy of AUDI OF AMERICA, LLC

-- Remove the belt pulley side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Press back the guide rail using a screwdriver in direction of -arrow- and lock the pistons from the chain tensioner for the drive chain using the : T03006  .

Fig 4: Pushing Drive Chain Tensioner Guide Rail

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower guide rail -1-.

Fig 5: Identifying Timing Mechanism Drive Chain

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

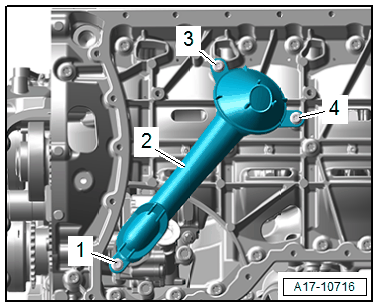

-- Remove the bolts -1, 3 and 4- and remove the intake tube -2- for the oil pump.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and remove the bolts in the following sequence: -21 to 1-.

Fig 6: Oil Pan Upper Section - Tightening Specifications and Sequence

Courtesy of AUDI OF AMERICA, LLC

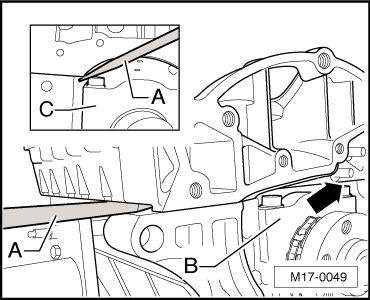

-- Carefully loosen the oil pan upper section from the bonding by positioning the screwdriver -A- at the areas indicated in the illustration.

Fig 7: Identifying Screwdriver To Pry Off Upper Section Of Oil Pan From Cylinder Block At Designated Points

Courtesy of AUDI OF AMERICA, LLC

B -

Crankshaft Bearing Cap 6

C -

Crankshaft Bearing Cap 1
