Oil Pan Upper Section, Removing And Installing: Installing

• Replace the seals and O-rings after removal.

Fig 1: Cleaning Sealing Surfaces

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sealant residue on the cylinder block and the oil pan upper section -1-, for example using a rotating plastic brush.

-- Clean any oil or grease off the sealing surfaces.

• Be sure to check the expiration date of the sealant.
  Fig 2: Cut Tube Nozzle At Front Marking

  Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: approximately 1.5 mm).

Courtesy of AUDI OF AMERICA, LLC

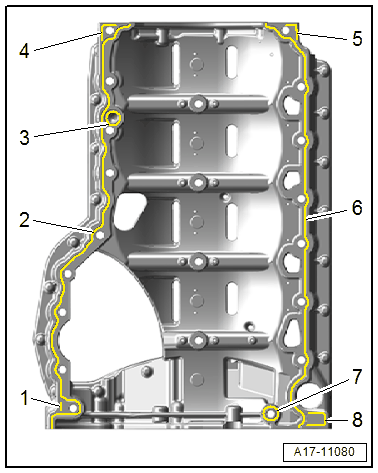

-- Apply the sealant beads -1 to 8- to the clean sealing surface on the oil pan upper section as shown.

-- Apply the sealant bead -3- sparingly so that the groove is filled.

• Sealant bead thickness: 2.0 to 2.5 mm
• Install the oil pan upper section within five minutes of applying the sealant.

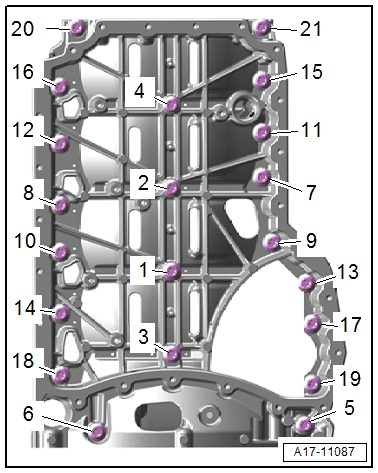

-- Position the oil pan upper section and install the bolts in the sequence shown -1 to 21- and install all the way by hand.

Fig 3: Oil Pan Upper Section - Tightening Specifications and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Wipe away any excess sealant at the areas marked with -arrows-.

Fig 4: Identifying Surfaces To Wipe Clean Of Excess Sealant Area

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts slightly.

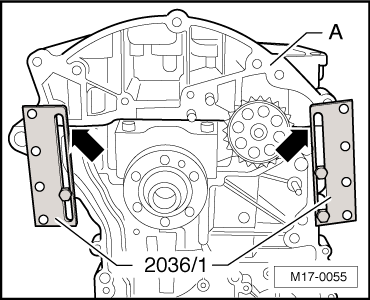

-- Tighten the : 2036/1  to 20 Nm on the cylinder block.

-- Press the oil pan upper section -A- firmly onto the plates.

-- Tighten the oil pan upper section bolts.

• The oil pan upper section must continue to touch the plates.

Further installation is performed in reverse order of removal, while noting the following:

-- Install the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

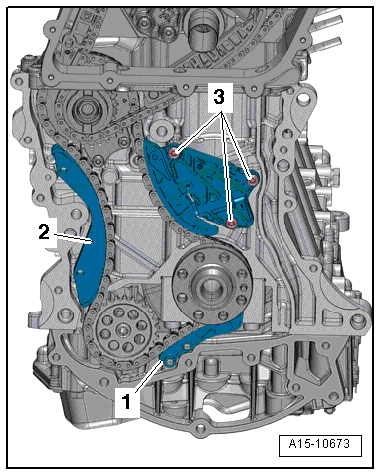

-- Insert the lower glide track -1-.

Fig 5: Identifying Timing Mechanism Drive Chain

Courtesy of AUDI OF AMERICA, LLC

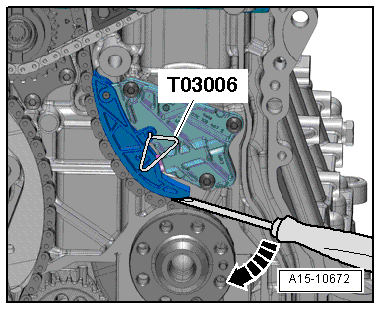

-- Push back the guide rail of the chain tensioner for the drive chain with a screwdriver in direction of -arrow- and remove the : T03006  .

Fig 6: Pushing Drive Chain Tensioner Guide Rail

Courtesy of AUDI OF AMERICA, LLC

-- Install the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Install the belt pulley side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .

-- Remove the : T40069  .
