Oil Pan Lower Section, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Engine oil drained. Refer to ENGINE OIL .

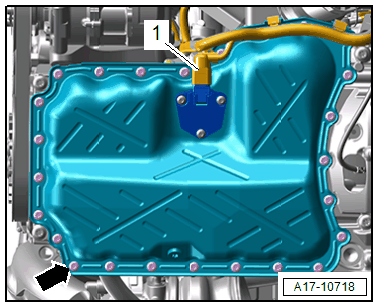

-- Disconnect the connector -1- for the Oil Level Thermal Sensor -G266- and free up the wire.
-- Starting at the bolt -arrow- remove the bolts for the oil pan lower section clockwise.
-- Loosen and remove the oil pan lower section carefully from the bonding.
