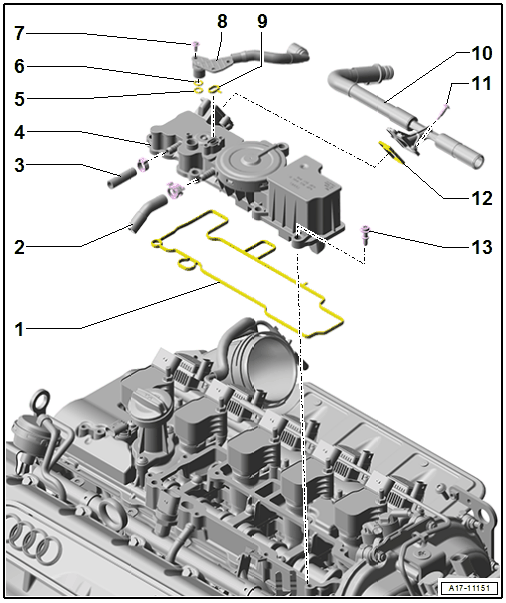

Overview - Crankcase Ventilation
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Replace after removing.
- Hose
- To the EVAP Canister
- Hose
- For the crankcase ventilation
- Crankcase Ventilation Module
- Removing and Installing. Refer to CRANKCASE VENTILATION MODULE, REMOVING AND INSTALLING .
- O-Ring
- Replace if damaged
- Black
- O-Ring
- Replace if damaged
- Orange
- Bolt
- 4.5 Nm
- Line
- For the crankcase ventilation
- Seal
- Replace if damaged
- Line
- For the crankcase ventilation
- Bolt
- 3.5 Nm
- Seal
- Replace if damaged
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
Crankcase Ventilation Module - Tightening Specifications and Sequence
-- Tighten the bolts -1 to 9- in the sequence shown to 9 Nm.
