Camshaft, Measuring Axial Clearance
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Dial Gauge Holder: VW387
- Dial Gauge - 0-10mm: VAS6079
Procedure
-- Remove the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING . (The camshafts remain in the camshaft housing).

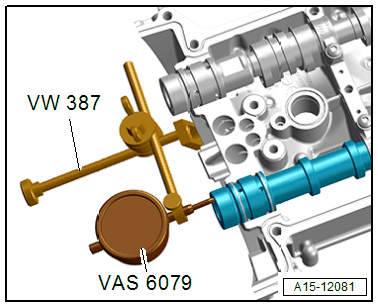

-- Secure the : VAS6079 with the : VW387 on the camshaft housing.
-- Press the camshaft against the dial gauge by hand.
-- Set the dial gauge to "0".
-- Press camshaft off the dial gauge and read the value:
- Axial play: 0.100 to 0.191 mm.
