Cam Actuator, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

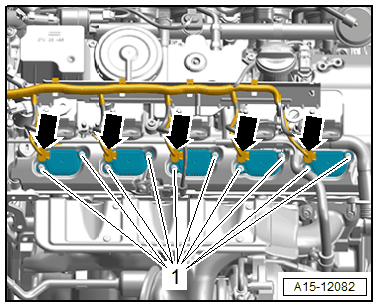

-- Disconnect the connectors -arrows- for the cam actuator and free up the wiring harness.
-- Remove the bolts -1- and remove the cam actuator.
