Timing Mechanism Drive Chain, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Replace the bolts that were tightened with an additional turn after removing them.

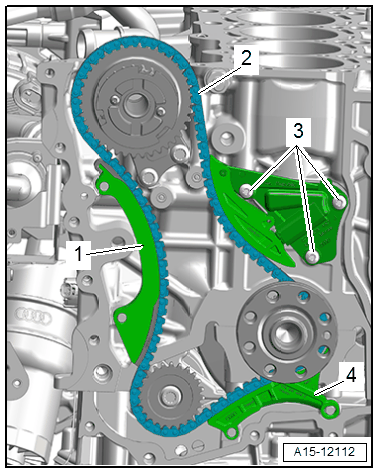

-- Bring the timing mechanism drive chain -2- into the installation position according to the identification applied.

-- Bring the guide rail -1 and 4- into the installation position.

-- Install the chain tensioner and tighten the bolts -3-.

-- Push back the guide rail of the chain tensioner for the drive chain with a screwdriver -arrow- and remove the : T03006 .

Fig 1: Pushing Drive Chain Tensioner Guide Rail

Courtesy of AUDI OF AMERICA, LLC

Further installation is performed in reverse order of removal, while noting the following:

-- Install the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
