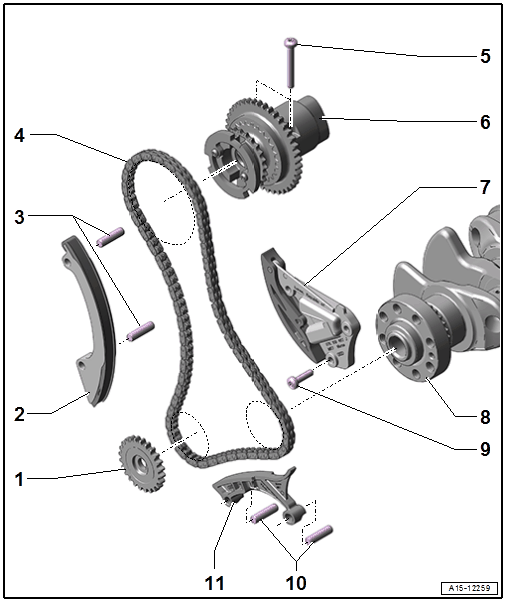

Overview - Timing Mechanism Drive Chain, Version 2
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Production from 04/24/2017
- Drive Chain Sprocket
- For the oil pump
- Must not be removed
- Guide Rail
- Guide Pin
- Timing Mechanism Drive Chain
- Mark the running direction with paint before removing.
- Removing and Installing. Refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Drive Chain Sprocket
- For the timing chains
- Must not be disassembled
- Installing. Refer to Fig 2.
- Chain Tensioner
- Crankshaft
- Bolt
- 9 Nm
- Guide Pin
- Guide Rail

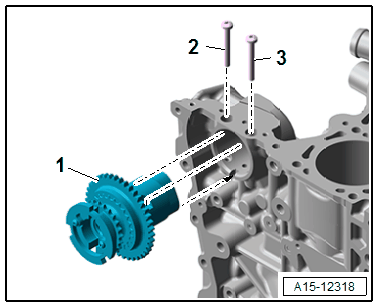

Install the Drive Chain Sprocket
-- Bring the drive chain sprocket -1- into the installation position, at the same time pay attention to the groove -arrow-.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Screws | Tightening Specifications |
|---|---|---|
| 1. | -2 and 3- | Install by hand all the way |
| 2. | -2 and 3- | 2 Nm |
| 3. | -2 and 3- | 9 Nm |
