Overview - Timing Mechanism Drive Chain, Version 1

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Production through 04/23/2017

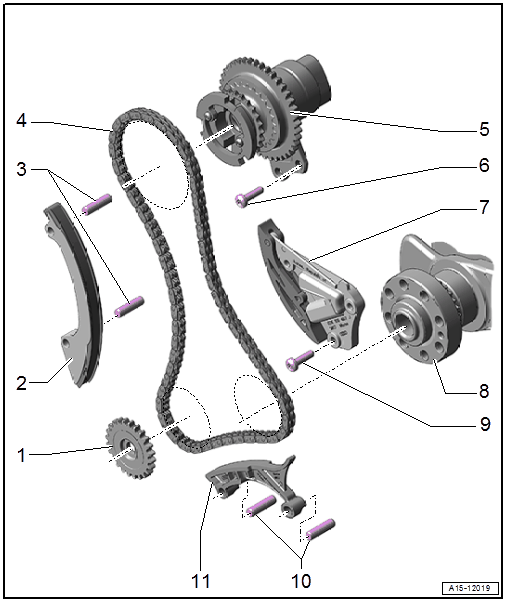

Fig 1: Exploded View Of Timing Mechanism Drive Chain, Version 1

Courtesy of AUDI OF AMERICA, LLC

Drive Chain Sprocket
- For the oil pump
- Must not be removed
Guide Rail
Guide Pin
Timing Mechanism Drive Chain
- Mark the running direction with paint before removing.
- Removing and Installing. Refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .
Drive Chain Sprocket
- For the timing chains
- Must not be removed
- Must not be disassembled
Bolt
- 20 Nm
Chain Tensioner
Crankshaft
Bolt
- 9 Nm
Guide Pin
Guide Rail
