Overview - Camshaft Timing Chains
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

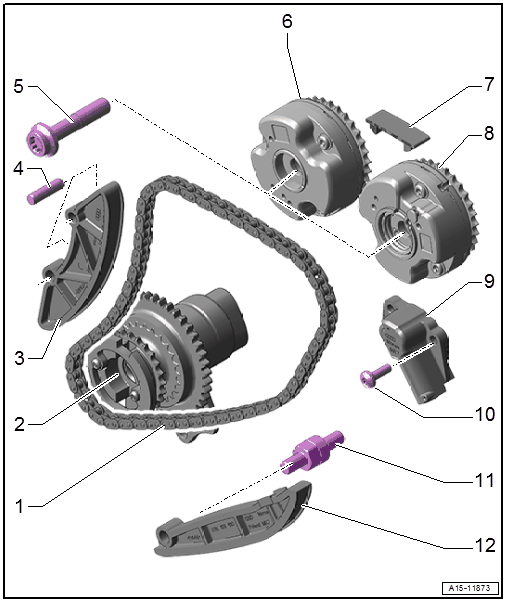

- Camshaft Timing Chain
- Mark the running direction with paint before removing.
- Removing from the camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Drive Chain Sprocket
- For the timing chains
- There are different versions. Refer to the Parts Information for the allocation.
- Version 1 -item ) Drive Chain Sprocket may not be removed
- Must not be disassembled
- Guide Rail
- Guide Pin
- Bolt
- 60 Nm +90°
- Replace after removing.
- Camshaft Adjuster, Intake Side
- Designation "IN"
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Gliding Piece
- Replace after removing.
- Camshaft Adjuster, Exhaust Side
- Designation "EX"
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Chain Tensioner
- Bolt
- 9 Nm
- Mounting Pin
- 40 Nm
- Tensioning Rail
