Camshaft Timing Chain, Removing And Installing: Installing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

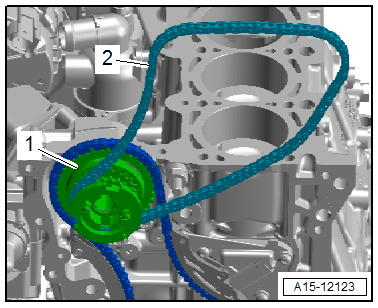

-- Place the camshaft timing chain -2- on the drive wheel -1- and tie it up.
-- Install the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
-- Install the cylinder head. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
After removing or replacing the chain drive components the adaptation values for the chain length must be adapted again.
-- Connect the Vehicle Diagnostic Tester.
-- Select Diagnostic operating mode and Start diagnostics .
-- Select the Select individual test tab and select the following tree structure consecutively:
- Drivetrain
- Select the engine code and engine
- 01- OBD-capable systems .
- 01 - Engine Electronics
- 01 - Engine electronics, functions
- 01 - Chain length diagnostic adaptation
