Oil Spray Jets, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
-- Remove the :T40069 .
- The notch -1- in the :T03003A is positioned vertically to the oil pan sealing surface.
- The marking -2- on the vibration damper is positioned opposite the marking -3- on the sealing flange.
-- When turning the crankshaft, only turn it in the direction of engine rotation -arrow-.
-- Turn the crankshaft with :T03003A -arrow- until the respective bolt is accessible.

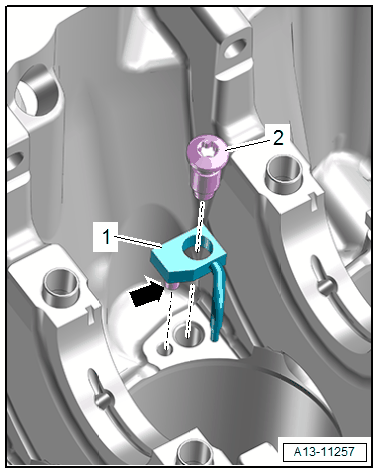

-- Remove the pressure relief valve -2- using the :T10545 .
-- Remove the oil spray jet -1-.
