Sub-Assembly Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the ribbed belt tensioner. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

-- Remove the engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

-- Remove the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

-- Free up the Mechanical Coolant Pump Switch Valve -N649- -arrow A-.

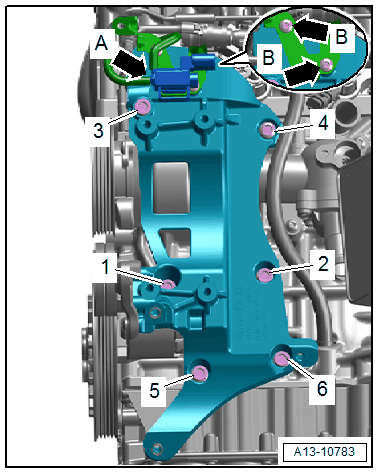

Fig 1: Sub-Assembly Bracket - Tightening Specifications and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -B arrows- and remove the bracket for the Mechanical Coolant Pump Switch Valve -N649-.

-- Remove the bolts -1 to 6- and remove the sub-assembly bracket.
