Ribbed Belt, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model preliminary work may be required. Refer to RIBBED BELT, REMOVING AND INSTALLING .
CAUTION:
Risk of destroying by reversing the running direction on a used ribbed belt.
- Before removing the ribbed belt, mark the running direction with chalk or a felt-tip pen for reinstallation.

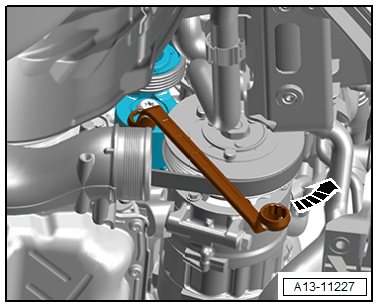

-- Pivot the tensioner counter-clockwise to release the tension on the ribbed belt in direction of -arrow-.
-- Remove the ribbed belt and release the tension on the tensioner.
