Ribbed Belt, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

-- Pivot the tensioner counter-clockwise.

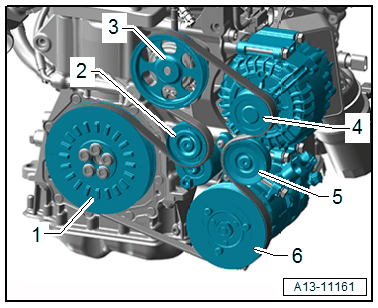

-- Mount the ribbed belt on the ribbed belt pulley. Refer to Figure.

-- Release the tension on the tensioner.

-- Check the ribbed belt for correct positioning.

-- Start the engine and check the ribbed belt routing.

Additional procedures depending on the model. Refer to RIBBED BELT, REMOVING AND INSTALLING .
