Ribbed Belt TENSIONER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

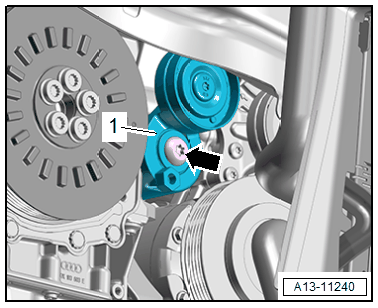

-- Remove the bolt -arrow- and the tensioner -1-.

GWWA13-11240Courtesy of AUDI OF AMERICA, LLC
