Overview - Belt Pulley Side Sealing Flange
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

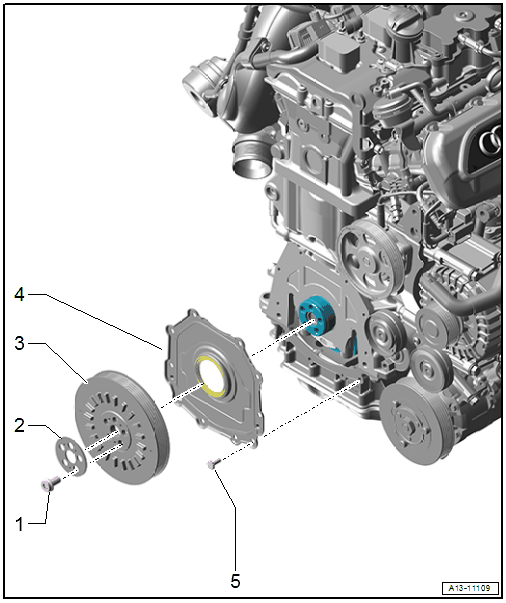

- Bolt
- Tightening specification -item 3.
- Washer
- Vibration Damper
- The illustration does not show the version in the vehicle.
- Overview. Refer to OVERVIEW - RIBBED BELT DRIVE .
- Only possible to install in one position.
- Sealing Flange, Belt Pulley Side
- Replace after removing.
- With centering bushing
- Install with sealant. Refer to the Parts Information.
- Removing and installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
- Bolt
- Tightening specification and sequence. Refer to Fig 1.
Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts -arrow- in steps:
| Step | Tightening Specification |
|---|---|
| 1. | Install by hand all the way |
| 2. | 3 Nm in a diagonal sequence |
| 3. | 45° diagonal sequence |
