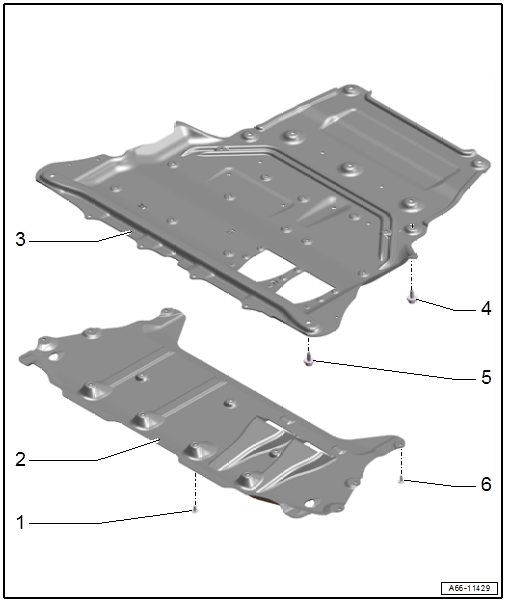

Overview - Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 24 Nm
- Quantity: 4
Noise Insulation Upper Section
- Removing and installing. Refer to NOISE INSULATION UPPER SECTION, REMOVING AND INSTALLING .
Noise Insulation Lower Section
- Removing and installing. Refer to NOISE INSULATION LOWER SECTION, REMOVING AND INSTALLING .
Bolt
- 24 Nm
- Quantity: 7
Bolt
- 24 Nm
- Quantity: 2
Bolt
- 9 Nm
- Quantity: 6
